PSR-T12 Spetification
Drawing
Slip ring
Operating Speed 300 rpm*
Number of Circuits 6, 12, 18
Voltage 250 VAC
Current Rating 5 amps / per circuit
Temperature Range -40 C to + 80 C
Contact Material Gold to Silvet
Lead Size 22 gauge, Teflon
Lead Lengths 300 mm minimum
Torque Approx 50 cmg per circuit
Through Bore 12,7 mm
Noise 100 milliohms max. tested @ 6 VDC,50 mA, 5 rpm

PSR-T25 Spetification
Drawing
Slip ring
Operating Speed 300 rpm*
Number of Circuits 6
Voltage 380 VAC
Current Rating 10 amps / per circuit
Temperature Range -40 C to + 80 C
Contact Material Silver to Silvet
Lead Size 17 gauge, Teflon
Lead Lengths 300 mm minimum
Torque Approx 50 cmg per circuit
Through Bore 25,4 mm
Noise 100 milliohms max. tested @ 6 VDC,50 mA, 5 rpm

PSR-T38 Spetification
Drawing
Slip ring
Operating Speed 300 rpm*
Number of Circuits 6
Voltage 380 VAC
Current Rating 10 amps / per circuit
Temperature Range -40 C to + 80 C
Contact Material Silver to Silvet
Lead Size 17 gauge, Teflon
Lead Lengths 300 mm minimum
Torque Approx 50 cmg per circuit
Through Bore 38,1 mm
Noise 100 milliohms max. tested @ 6 VDC,50 mA, 5 rpm
PSR-T38

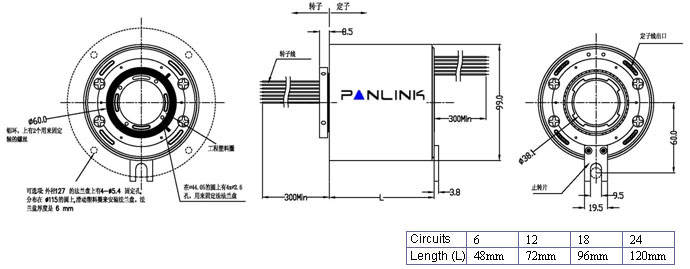

Dr_PSR-T38

PSR-T50 Spetification
Drawing
Slip ring
Operating Speed 300 rpm*
Number of Circuits 6
Voltage 380 VAC
Current Rating 10 amps / per circuit
Temperature Range -40 C to + 80 C
Contact Material Silver to Silvet
Lead Size 17 gauge, Teflon
Lead Lengths 300 mm minimum
Torque Approx 50 cmg per circuit
Through Bore 50 mm
Noise 100 milliohms max. tested @ 6 VDC,50 mA, 5 rpm
PSR-T50

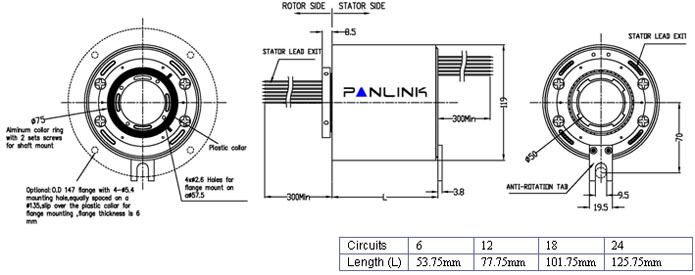

Dr_PSR-T50
Slip Ring Industrial models
PSR-T12

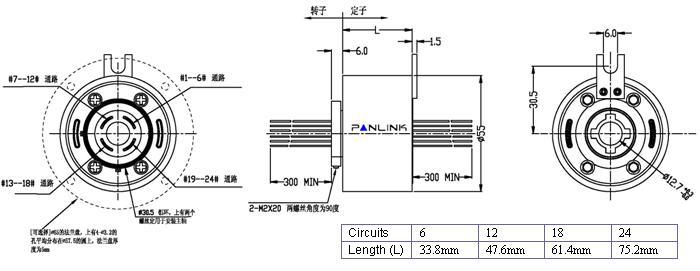

Dr_PSR-T12
PSR-T25

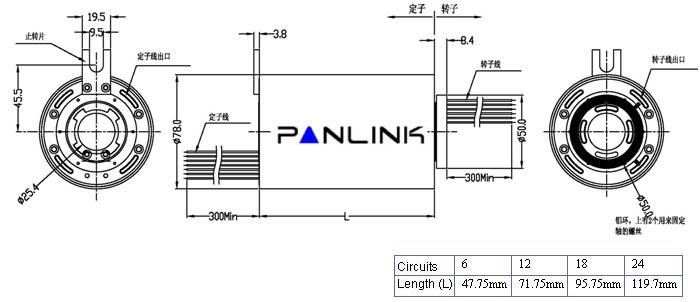

Dr_PSR-T25
