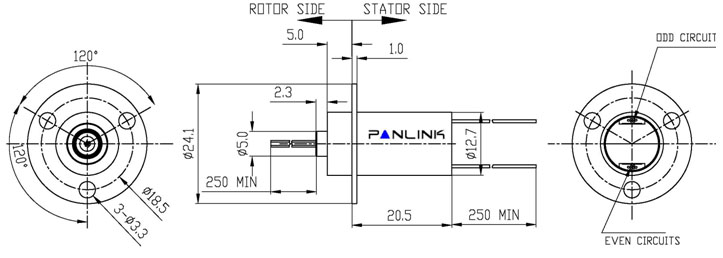

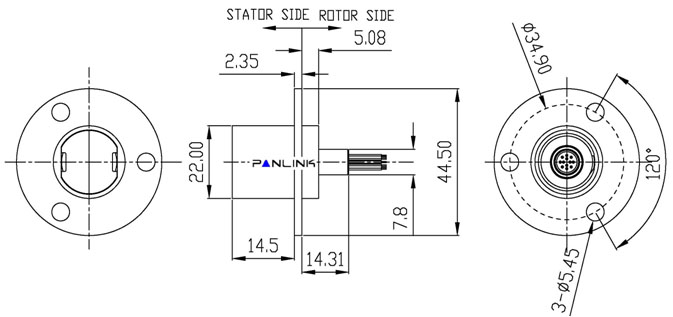

Drawing
Slip ring
Operating Speed |
300 rpm* |
Number of Circuits |
6 |
Voltage |
240 VAC |
Current Rating |
2 amps / per circuit |
Temperature Range |
-40 C to + 80 C |
Contact Material |
Gold to Gold |
Lead Size |
28# silver plated copper,, Teflon |
Lead Lengths |
200 mm minimum |
Dielectric Strength |
500 VAC @ 50Hz, between each circuit and all other circuits |
Insulation Resistance |
1000 megohms @ 500 VDC |
Noise |
70 milliohms max. tested @ 6 VDC,50 milliamps when running @ 5 rpm |

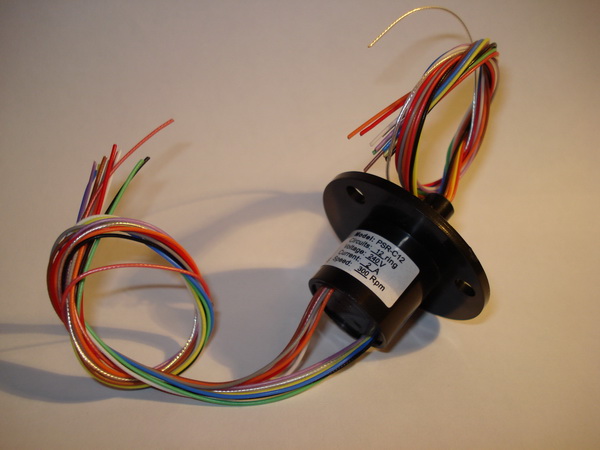

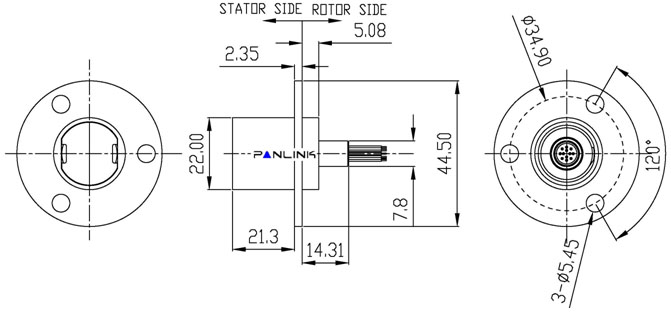

Drawing
Slip ring
Operating Speed |
300 rpm* |
Number of Circuits |
12 |
Voltage |
240 VAC |
Current Rating |
2 amps / per circuit |
Temperature Range |
-40 C to + 80 C |
Contact Material |
Gold to Gold |
Lead Size |
28# silver plated copper,, Teflon |
Lead Lengths |
200 mm minimum |
Dielectric Strength |
500 VAC @ 50Hz, between each circuit and all other circuits |
Insulation Resistance |
1000 megohms @ 500 VDC |
Noise |
70 milliohms max. tested @ 6 VDC,50 milliamps when running @ 5 rpm |

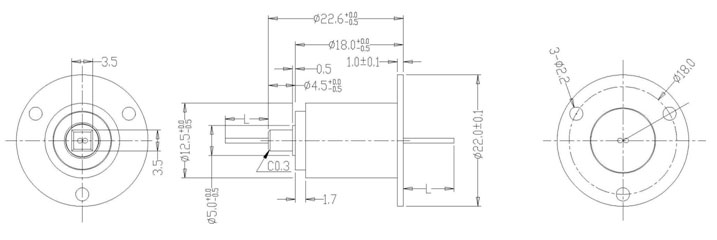

Drawing
Slip ring
Operating Speed |
300 rpm* |
Number of Circuits |
4 |
Voltage |
240 VAC |
Current Rating |
2 amps / per circuit |
Temperature Range |
-40 C to + 80 C |
Contact Material |
Gold to Gold |
Lead Size |
30# silver plated copper,, Teflon |
Lead Lengths |
200 mm minimum |
Dielectric Strength |
500 VAC @ 50Hz, between each circuit and all other circuits |
Insulation Resistance |
1000 megohms @ 500 VDC |
Noise |
70 milliohms max. tested @ 6 VDC,50 milliamps when running @ 5 rpm |

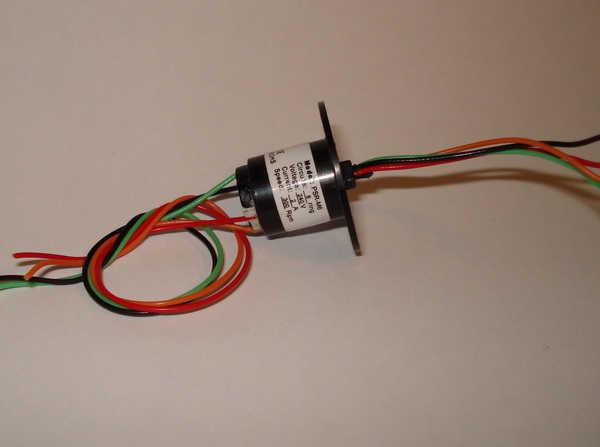

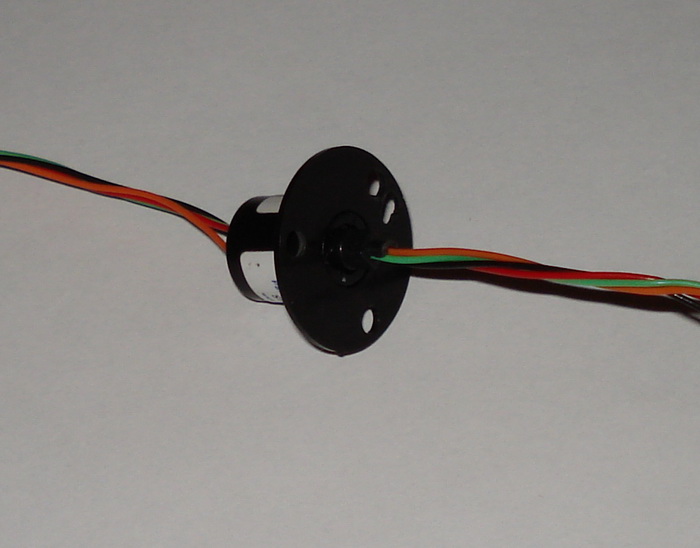

Drawing
Slip ring
Operating Speed |
300 rpm* |
Number of Circuits |
6 |
Voltage |
240 VAC |
Current Rating |
2 amps / per circuit |
Temperature Range |
-40 C to + 80 C |
Contact Material |
Gold to Gold |
Lead Size |
30# silver plated copper,, Teflon |
Lead Lengths |
200 mm minimum |
Dielectric Strength |
500 VAC @ 50Hz, between each circuit and all other circuits |
Insulation Resistance |
1000 megohms @ 500 VDC |
Noise |
70 milliohms max. tested @ 6 VDC,50 milliamps when running @ 5 rpm |

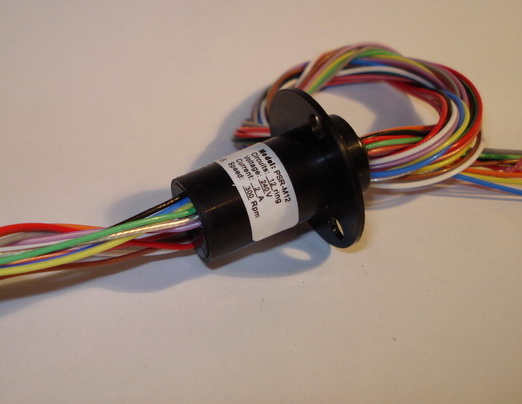

Drawing
Slip ring
Operating Speed |
300 rpm* |
Number of Circuits |
12 |
Voltage |
240 VAC |
Current Rating |
2 amps / per circuit |
Temperature Range |
-40 C to + 80 C |
Contact Material |
Gold to Gold |
Lead Size |
30# silver plated copper,, Teflon |
Lead Lengths |
200 mm minimum |
Dielectric Strength |
500 VAC @ 50Hz, between each circuit and all other circuits |
Insulation Resistance |
1000 megohms @ 500 VDC |
Noise |
70 milliohms max. tested @ 6 VDC,50 milliamps when running @ 5 rpm |

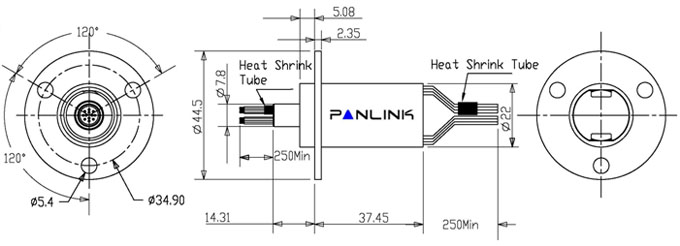

Drawing
Slip ring
Operating Speed |
300 rpm* |
Number of Circuits |
24 |
Voltage |
240 VAC |
Current Rating |
2 amps / per circuit |
Temperature Range |
-40 C to + 80 C |
Contact Material |
Gold to Gold |
Lead Size |
28# silver plated copper,, Teflon |
Lead Lengths |
200 mm minimum |
Dielectric Strength |
500 VAC @ 50Hz, between each circuit and all other circuits |
Insulation Resistance |
1000 megohms @ 500 VDC |
Noise |
70 milliohms max. tested @ 6 VDC,50 milliamps when running @ 5 rpm |
